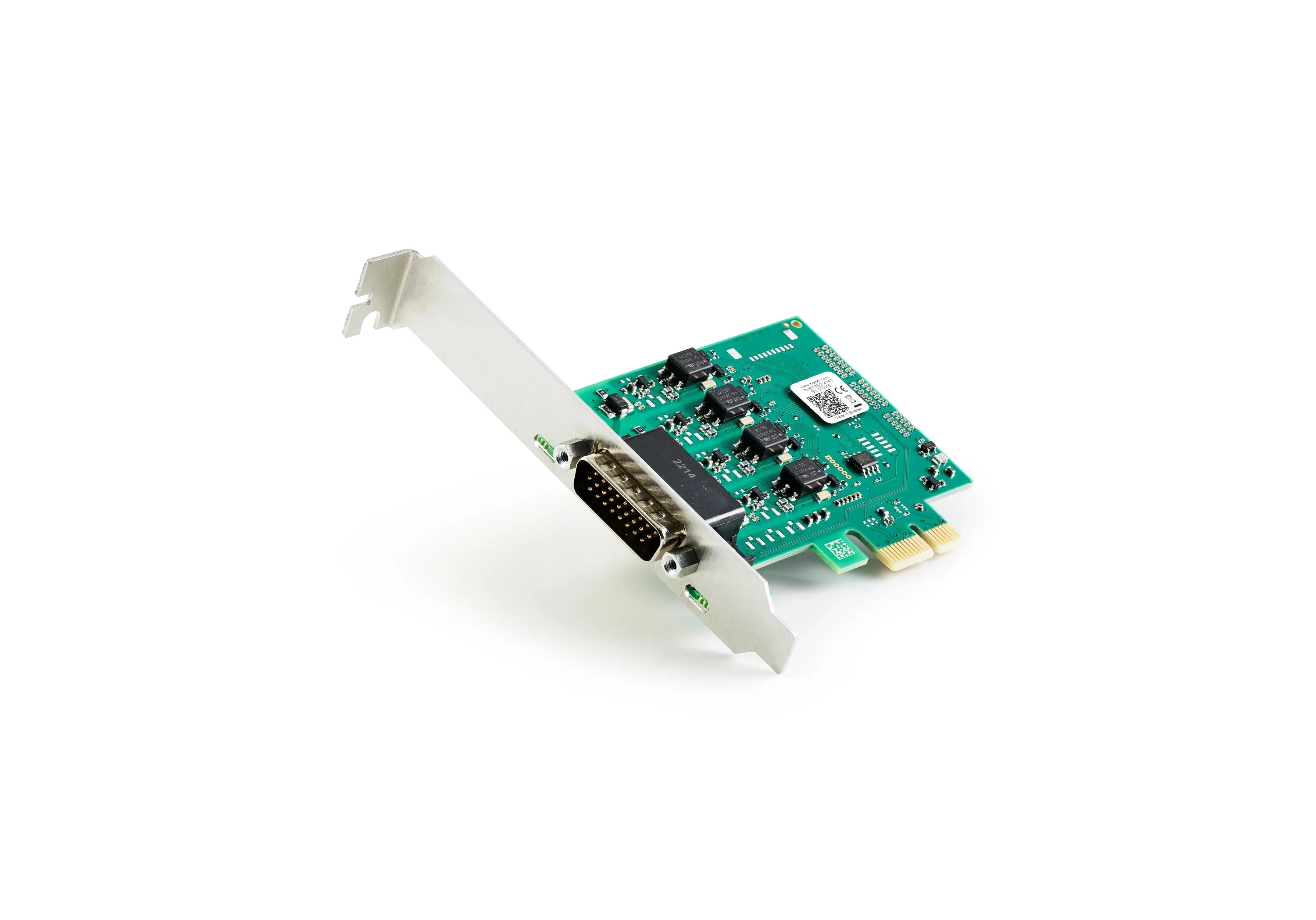

Kvaser PCIEcan 4xCAN v2 is a small, yet advanced, CAN multi channel real time CAN interface that handles transmission and reception of standard and extended CAN messages on the bus with a high time stamp precision. It is compatible with applications that use Kvaser‘s CANlib.

Major features

PCI Express CAN interface.
Supports CAN FD, up to 8 Mbit/s.
Quick and easy plug-and-play installation.
Supports both 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B active) identifiers.
100 % compatible with applications written for other Kvaser CAN hardware with Kvaser CANlib.
High-speed CAN connection (compliant with ISO 11898-2), up to 1 Mbit /s.
Fully compatible with J1939, CANopen, NMEA 2000®and DeviceNet.
Support for SocketCAN.
Supports silent mode for analysis tools – listen to the bus without interfering.
Supports simultaneous usage of multiple Kvaser interfaces.
Low profile board, includes low and high profile brackets.
Includes 4 channel breakout cable.

Specifications

Warranty

2-Year Warranty. See our General Conditions and Policies for details.

Support

Free Technical Support on all products available by contacting support@kvaser.com.

Software

Documentation, software and drivers can be downloaded for free at www.kvaser.com/downloads.
Kvaser CANLIB SDK is a free resource that includes everything you need to develop software for the Kvaser CAN interfaces. Includes full documentation and many program samples, written in C, C++, C#, Delphi, and Visual Basic.
All Kvaser CAN interface boards share a common software API. Programs written for one interface type will run without modifications on the other interface types!
J2534 Application Programming Interface available.
RP1210A Application Programming Interface available.
On-line documentation in Windows HTML-Help and Adobe Acrobat format.

Bitrate

20-1000 kbps

CAN FD Bitrate

Up to 8 Mbit/s

Categories

Interfaces, Hardware, CAN

Certificates

CE, RoHS

Channels

Connectors

26-pin HD D-SUB

Current Consumption

Typically 700 mW idle plus max 150 mW per channel, i.e. max 1300 mW for a four channel interface. Only uses 3.3 V.

Error Counters Reading

Yes

Error Frame Generation

Yes

Galvanic Isolation

Yes

Interfaces

PCI Express

Length

86 mm

Messages Per Second Receive

20000 mps

Messages Per Second Sending

20000 mps

Linux, Win 7, Win 10, Win 8

Silent mode

Yes

Sound

Temp range

-40 °C to +85 °C

Timestamp Resolution (µs)

1 µs

Weight

50 g

Kvaser PCIEcan

Kvaser PCIEcan 4xCAN v2

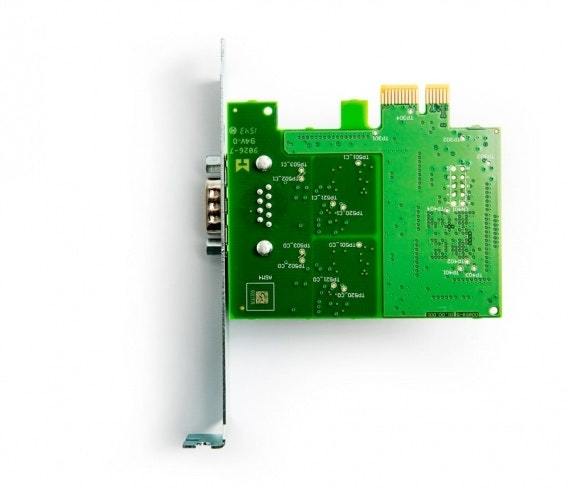

Kvaser PCIEcan 2xHS v2
